Plug n' Play GPS Tracker

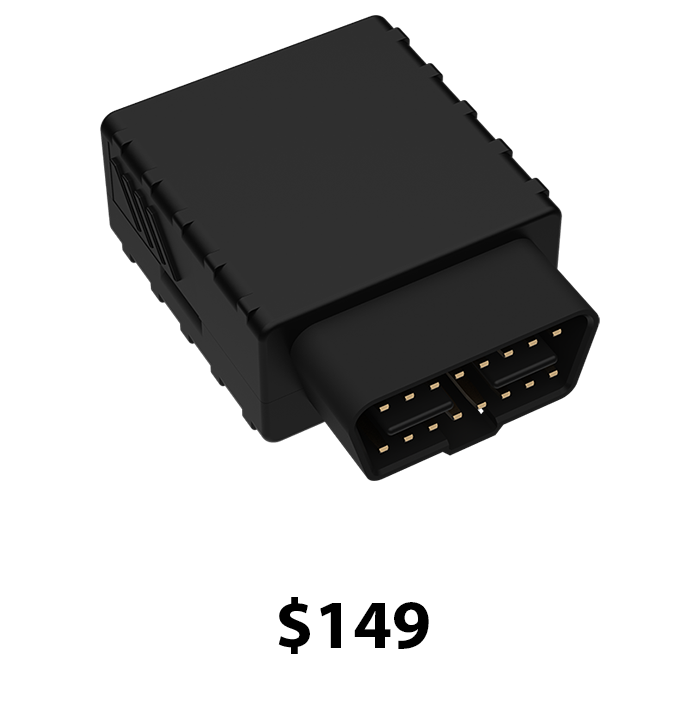

The Eagle
A plug n' play and affordable OBDII vehicle GPS tracking device which is easy to install and is ideal for real-time tracking a range of vehicles including cars and trucks.
The Eagle
With easy installation, track every detail about your vehicles
Real Time Tracking
The Eagle remains continuously connected while on the move for real time tracking.
Backup Battery
A 170 mAh Li-Ion backup battery ensures the Eagle will continue to work even if it is removed from the OBDII port.
Highly Accurate
GPS, GALILEO and GLONASS positioning systems are used simultaneously for enhanced accuracy and faster fixes.
AES-256 Encryption
Military-level AES-256 encryption to protect the integrity and confidentiality of your telematics data.
Plug n' Play
Quickly and easily plug the Eagle into existing OBDII ports or install covertly with the extension cables.
Sleep Mode
When stationary the Eagle enters sleep mode, switching the update rate to every 15 minutes until movement occurs to conserve asset battery life.
Technical Specifications
| Dimensions | 67mm x 49mm x 25mm (HxWxD) |
| Weight | 63g |
| Operating Temperature | -20 °C to +40 °C |
| GNSS | GPS, GLONASS & GALILEO |
| Tracking Sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Input Voltage Range | 10 - 30 V DC |
| Backup Battery | 170 mAh Li-Ion battery |
| Connection | OBDI port |
| Hot Start | < 1 s |
| Cold Start | < 35 s |
| Memory | 128MB internal flash memory |
| Tracking When Moving | Every 30 seconds or 5 minutes |
| Tracking When Stationary | Every 15 minutes |
| Made In | Europe |
Frequently Asked Questions
Does the Eagle track in real time?
Yes. When combined with the Advanced Data Plan, the Eagle will track every 30 seconds when it is moving, providing real time tracking including speed.
How is the Eagle powered?
The Eagle plugs into the OBDII port of the vehicle which is how it is powered.
Will the Eagle drain my vehicle battery?
No. The Eagle uses very little power when it is stationary and also tracks its location less frequently when it is stationary, ensuring that the vehicle battery is not drained.
Can I use the Eagle on more than one vehicle?
You sure can. Moving the Eagle from one vehicle to another is straightforward and quick. Simply unplug the Eagle, then locate the OBDII port in the new vehicle and plug the Eagle in.
What is an OBDII port?
Every truck or car on the road produced after 1996 is lawfully mandated to have an OBDII port. It is usually located beneath the dashboard on the driver's side.
Is the Eagle waterproof?
No. The Eagle is not waterproof and therefore must be located somewhere where it is protected from the elements.
Do you offer bulk discounts?
We do offer a discount on the hardware when ordering 5 or more devices at the same time. Please contact our Sales team at sales@itrackers.com.au to obtain a free quote.
Accessories

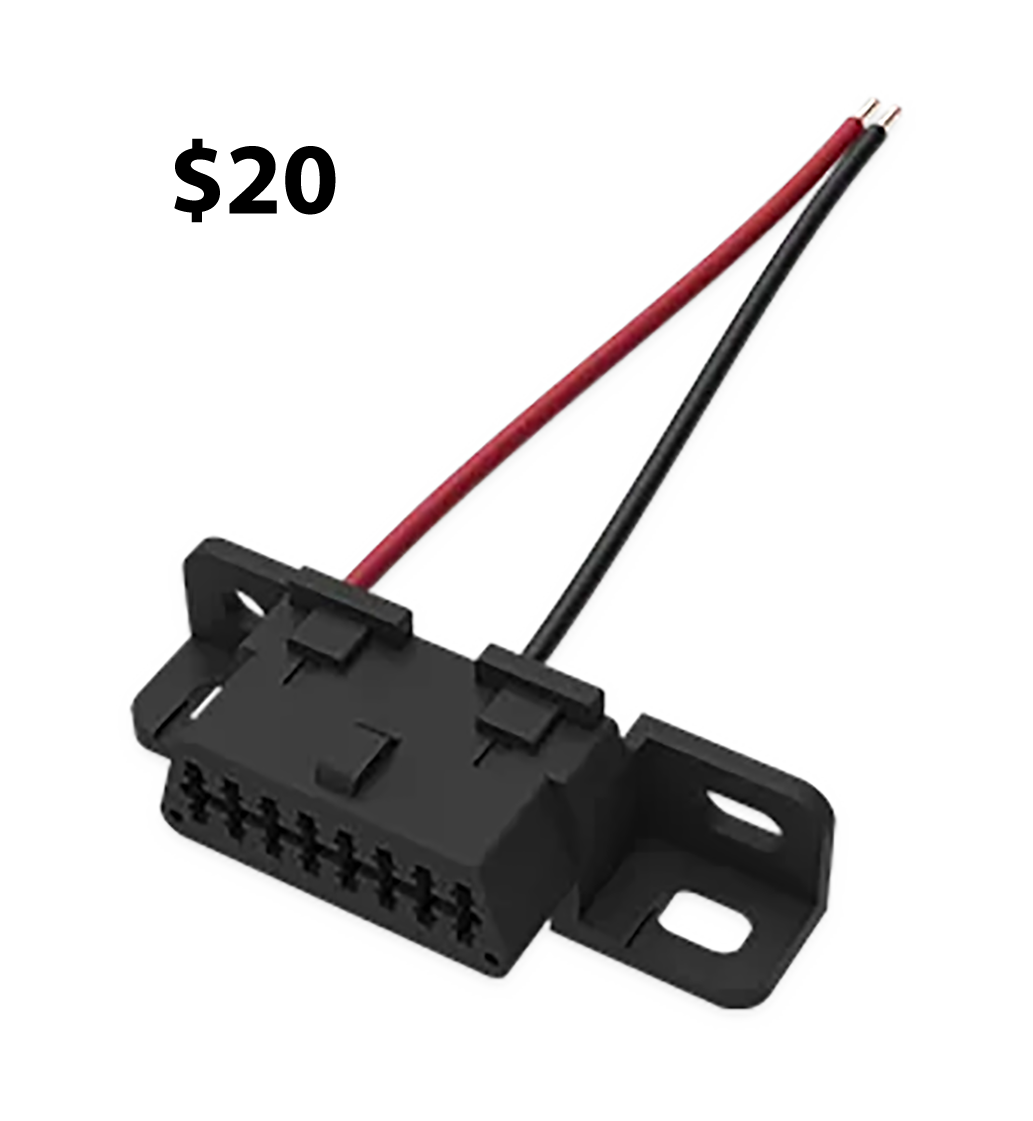

OBDII Power Cable (Female)
The two-wire OBDII power cable is used to connect the Eagle to a 10-30V DC power supply. The length of the cable is 23.5 cm (+- 0.5 cm).

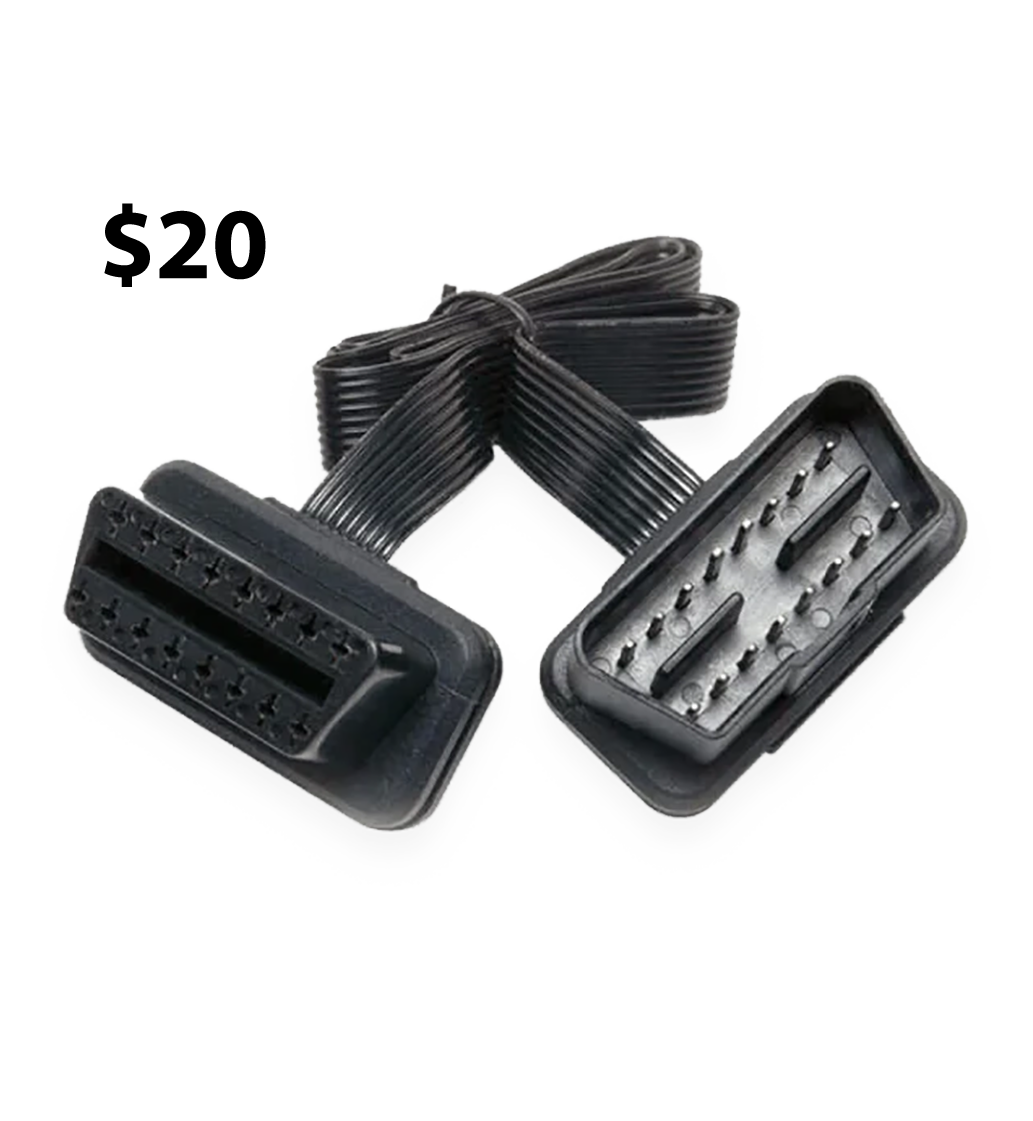

OBDII Extension Cable
The OBDII extension cable is used when the OBDII port is in a hard to reach place and when vehicle parts are interfering with GPS signal. Cable length is 50 cm.
